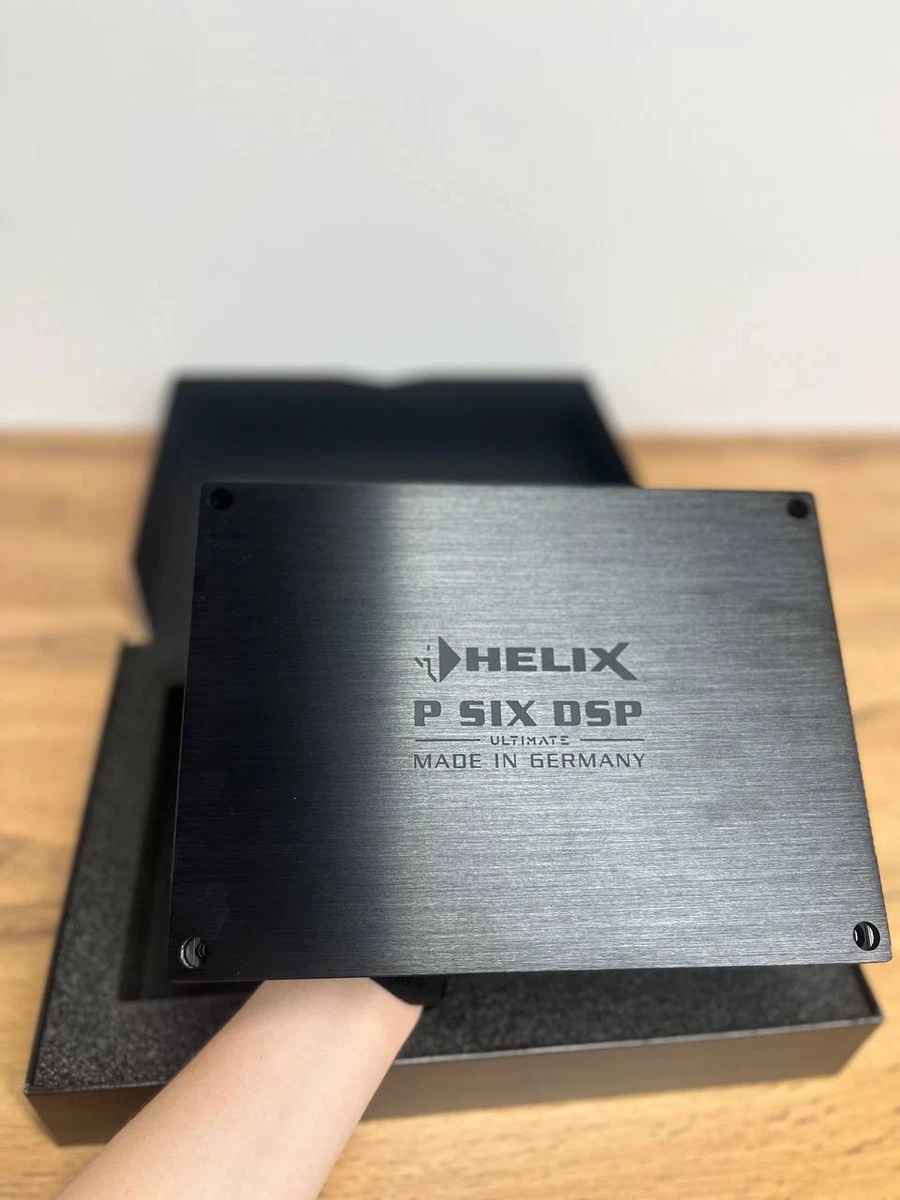

spesifikasi lengkap produk Helix P‑six DSP Ultimate 12ch DSP 120Wx 6ch Power Amplifier (amplifier mobil dengan DSP terintegrasi):

???? Daya & Output
Konfigurasi Amplifier: 6 ch power amplifier + 12 channel DSP internal
Power RMS (≤ 1% THD+N)* @ 4 Ω → 6 × 120 Watt RMS* @ 2 Ω → 4 × 230 Watt RMS (kelebihan daya di kanal C–F)
Max Output per channel* Hingga 145 W RMS @ 4 Ω* Hingga 285 W RMS @ 2 Ω
Teknologi Drive: Ultra HD Class D (efisiensi tinggi + kualitas suara tinggi)
????️ DSP (Digital Signal Processor)
12 channel DSP terintegrasi – memungkinkan pengaturan aktif crossover, EQ dan time alignment untuk sistem audio kompleks
DSP Power: 2 × 295 MHz (~2.4 miliar MAC ops/dtk)
DSP Resolution: 64 bit
Sampling Rate: 96 kHz
Signal Converters: A/D & D/A dari BurrBrown
???? Input & Output
Inputs* 6 × RCA / Cinch* 6 × High-level speaker inputs (hingga 32 V RMS)* 1 × Optical SPDIF (12 – 96 kHz)* 1 × Coaxial SPDIF (12 – 192 kHz)* 1 × Remote In
Outputs* 6 × Speaker outputs* 4 × RCA/Cinch analog ouputs (3 V)* 1 × Optical SPDIF output (96 kHz)* 2 × Remote outs
???? Karakteristik Lain
Frequency Response: 10 Hz – 44 kHz
Signal-to-Noise Ratio* Digital input: 108 dB (A-weighted)* Analogue input: 102 dB (A-weighted)
Total Harmonic Distortion (THD): < 0.004 %
Damping Factor: > 100
⚡ Daya & Konsumsi
Operating Voltage: 10.5 – 32 V (start-stop down to 6 V)
Max Power Draw: 65 A (DC 12/24 V)
No-load Current: 1350 mA
Remote Output Current maks.: 500 mA
Fuse: 3 × 20 A LP-mini fuses
???? Fitur Tambahan
Smart Control Port untuk remote/aksesori
HEC Slot (ekspansi seperti Bluetooth HD, USB high-res)
ADEP circuit & Auto Remote switch
Start-Stop compatible
???? Dimensi
Ukuran (H×W×D): 50 × 260 × 190 mm
